Gas Line Installation and Repair in Upland, CA

Q: What kind of pipe is used for underground gas lines?

Underground gas lines must use approved yellow high-density polyethylene (HDPE) pipe with heat-fusion or mechanical transitions and an anodeless riser where the pipe emerges above ground. Black iron pipe cannot be buried directly in soil without protective coating.

Q: How do I know if my existing gas line is large enough for a tankless water heater?

Our technicians measure the distance from your gas meter to the water heater and calculate the total BTU demand of all gas appliances in your home. Tankless water heaters typically require a dedicated 3/4-inch line directly from the main meter manifold.

Call (207) 419-2600

Dispatched from 140 N Benson Ave

Licensed California C-36 Technicians

Upfront Written Estimates

Code-Compliant California Standard

Natural gas provides efficient, dependable energy for home heating, tankless water heaters, chef-grade kitchen ranges, and backyard living amenities. However, installing or modifying fuel gas piping demands exacting craftsmanship and rigorous safety testing. An undersized gas line starves appliances of necessary fuel pressure, while an improperly sealed fitting poses grave fire and explosion risks. Our C-36 licensed plumbers design, permit, and install schedule 40 black steel and polyethylene underground gas lines across Upland.

Fuel Gas Line Sizing and Manifold Design

Gas pipe sizing is governed strictly by the Longest Length Method outlined in Chapter 12 of the California Plumbing Code. Adding a high-demand appliance—such as a 199,000 BTU tankless water heater, a commercial-style 6-burner range, or a 400,000 BTU pool heater—often exceeds the delivery capacity of existing 1/2-inch or 3/4-inch branch lines. We perform total connected load calculations from your SoCalGas meter to calculate required pipe diameters.

Accurate BTU load calculations across all simultaneous household gas appliances
Upsizing of primary gas distribution manifolds to 1-inch or 1-1/4-inch schedule 40 black iron
Coordination with SoCalGas if a high-pressure (2 PSI) meter regulator upgrade is needed
Installation of dedicated manual shutoff valves and sediment traps (dirt legs) at every appliance

Diagnostic diagram for Gas Line Installation & Repair in Upland CA — Technical component diagram and diagnostic verification flow for gas line installation & repair in residential properties.

Outdoor Living Gas Lines: BBQs, Fire Pits, and Pool Heaters

Expanding outdoor entertaining spaces in Upland and San Antonio Heights often involves extending natural gas lines across yards to patio fire pits, custom outdoor kitchen islands, and pool heaters. Underground fuel piping requires specialized materials that resist corrosive soil chemistry and seismic shear.

Direct-burial yellow high-density polyethylene (HDPE) gas pipe with anodeless riser transitions
Trenching at code-mandated depths with yellow caution tracer wire for future line locating
Elimination of above-ground propane tank swaps with convenient continuous natural gas hookups
Installation of emergency outdoor gas shutoff valves with weather-resistant lockouts

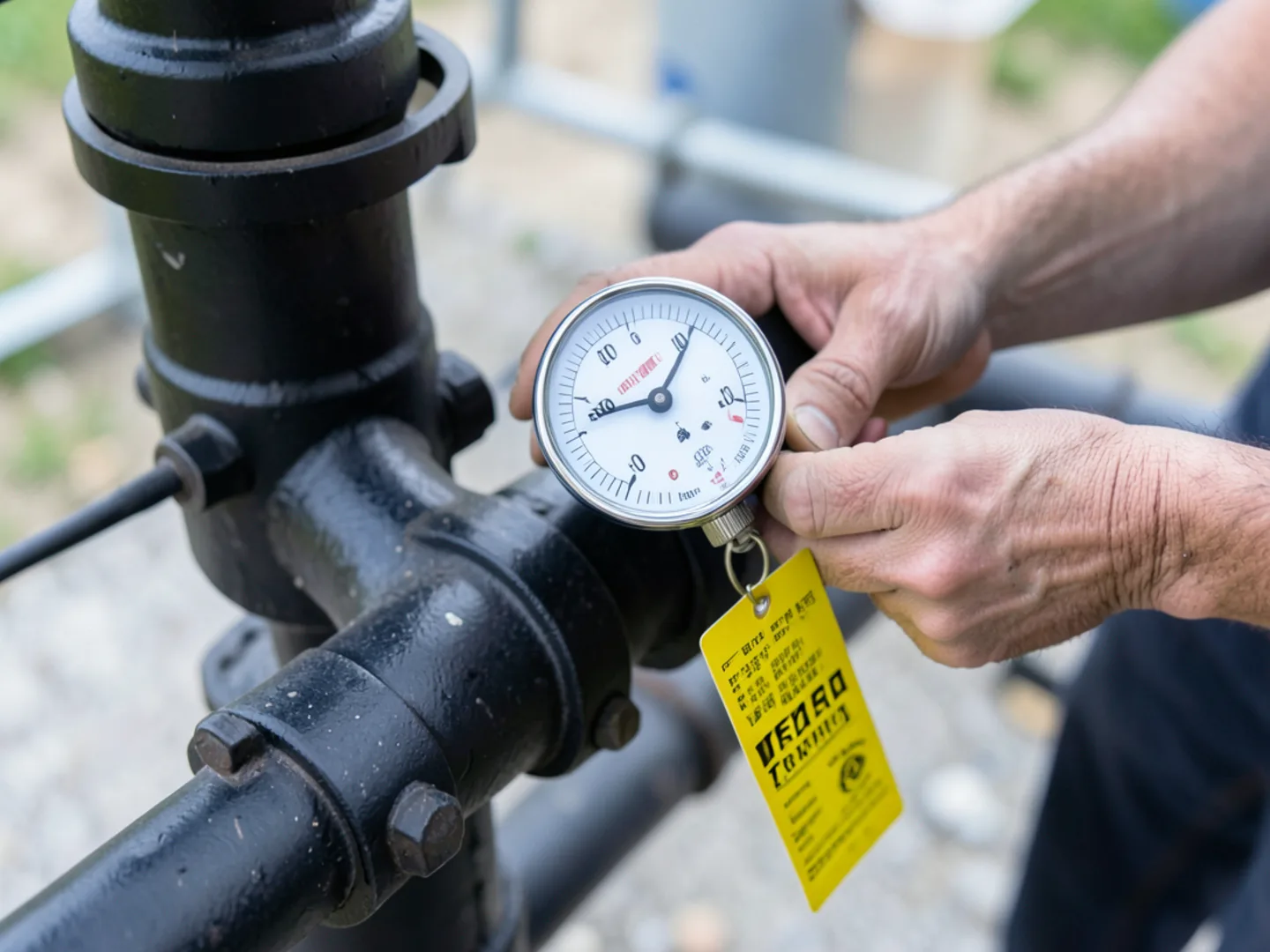

Testing gas pressure with analog manometer - Plumbing Services Upland CA — A technician inspecting an analog pressure test gauge mounted onto a black iron gas line assembly, yellow test tag attached, sharp close-up angle with natural daylight.

Rigorous Pressure Testing and City Permit Sign-Off

Gas work cannot be left to guesswork. Once gas lines are installed or repaired, we disconnect all sensitive appliance regulators and pump the manifold to 10 to 15 PSI of compressed air using a certified mechanical diaphragm test gauge. The system must hold pressure with zero decay for the duration mandated by the City of Upland Building and Safety Division before gas service is energized.

Diaphragm pressure gauge testing to 10–15 PSI to prove absolute gas-tight joint integrity
Electronic combustible gas sniffer sweeps across all threaded fittings and union joints
Complete permit application and on-site inspection coordination with City of Upland inspectors
Safe burner bleeding and appliance pilot re-lighting following gas restoration

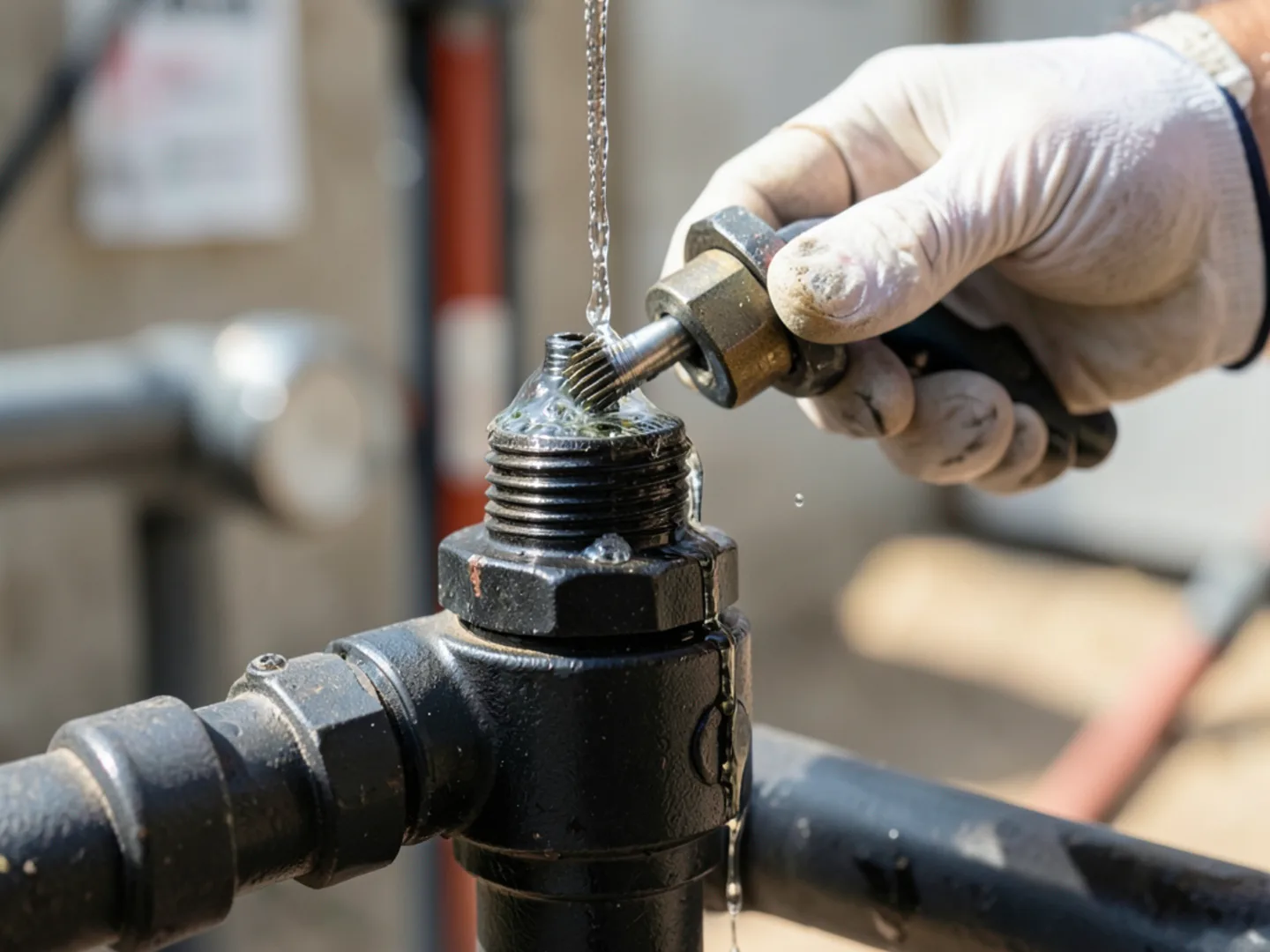

Applying soap solution to gas pipe - Plumbing Services Upland CA — Close-up of a plumber's gloved hand brushing clear bubbling leak-detection fluid over a threaded black iron pipe union fitting to check for active gas leaks, bright side illumination.

Symptom Diagnostics vs Permanent Resolution

The Problem

Compromised System Symptoms

Unaddressed plumbing wear damages building materials, increases water waste, and risks sudden structural failures.

Accelerating leaks inside walls, crawlspaces, or under concrete slabs
Water pressure imbalances and severe thermal shock in shower lines
Hard mineral scaling that chokes heat transfer and clogs cartridges

Our Permanent Fix

Our Code-Compliant Mechanical Standard

We install durable, commercial-grade materials designed for long-term reliability in the Cucamonga Valley.

Precision isolation using full-port brass quarter-turn ball valves
Type L copper or expansion Uponor PEX-a resistant to local water chemistry
Comprehensive pressure and flow testing before work completion

Frequently Asked Questions: Gas Line Installation & Repair

Can I run a natural gas line to my backyard patio myself?

No. California and City of Upland building codes require fuel gas piping to be permitted and installed by a licensed contractor to ensure proper pipe sizing, joint sealing, burial depth, and pressure testing.

What kind of pipe is used for underground gas lines?

How do I know if my existing gas line is large enough for a tankless water heater?
